Oils & Fats refining

Crude vegetable and animal oils and fats, produced by rendering, pressing and/or solvent extraction can contain various minor components like free fatty acids (ffa), partial glycerides, phosphatides, oxidation products, sterols, tocopherols, pigments, protein fragments, and traces of contaminants, pesticides and heavy metals.

The refining processes allow to eliminate unwanted components in a controlled way to produce edible vegetable and animal oils and fats, ensuring they meet the stringent food safety and quality standards required by the industry and end-consumers.

refining

How does it work?

The refining process involves several unit operations that can be combined and optimized to achieve the highest edible oil quality. Unwanted components are gradually removed during refining, ensuring minimal loss of desirable elements. The industry generally uses two refining routes:

  • Chemical refining is a robust and forgiving process primarily used for heavily loaded vegetable oils like soybean and rapeseed oils. The process includes degumming, caustic neutralization, bleaching, and deodorizing. For some oils, such as sunflower and corn, an additional winterizing step can be added. A key feature is the removal of FFA during neutralization using caustic soda, with soapstock separated by centrifugation.
  • Physical refining is primarily used for high-FFA oils like palm and sunflower oil. In this process, free fatty acids are removed during the deodorization step by steam stripping as a distillate. The process steps include optional acid/enzymatic degumming, bleaching, stripping-deodorizing, and optional winterizing. Physical refining generally results in lower product losses, particularly for high-FFA oils.

Full process

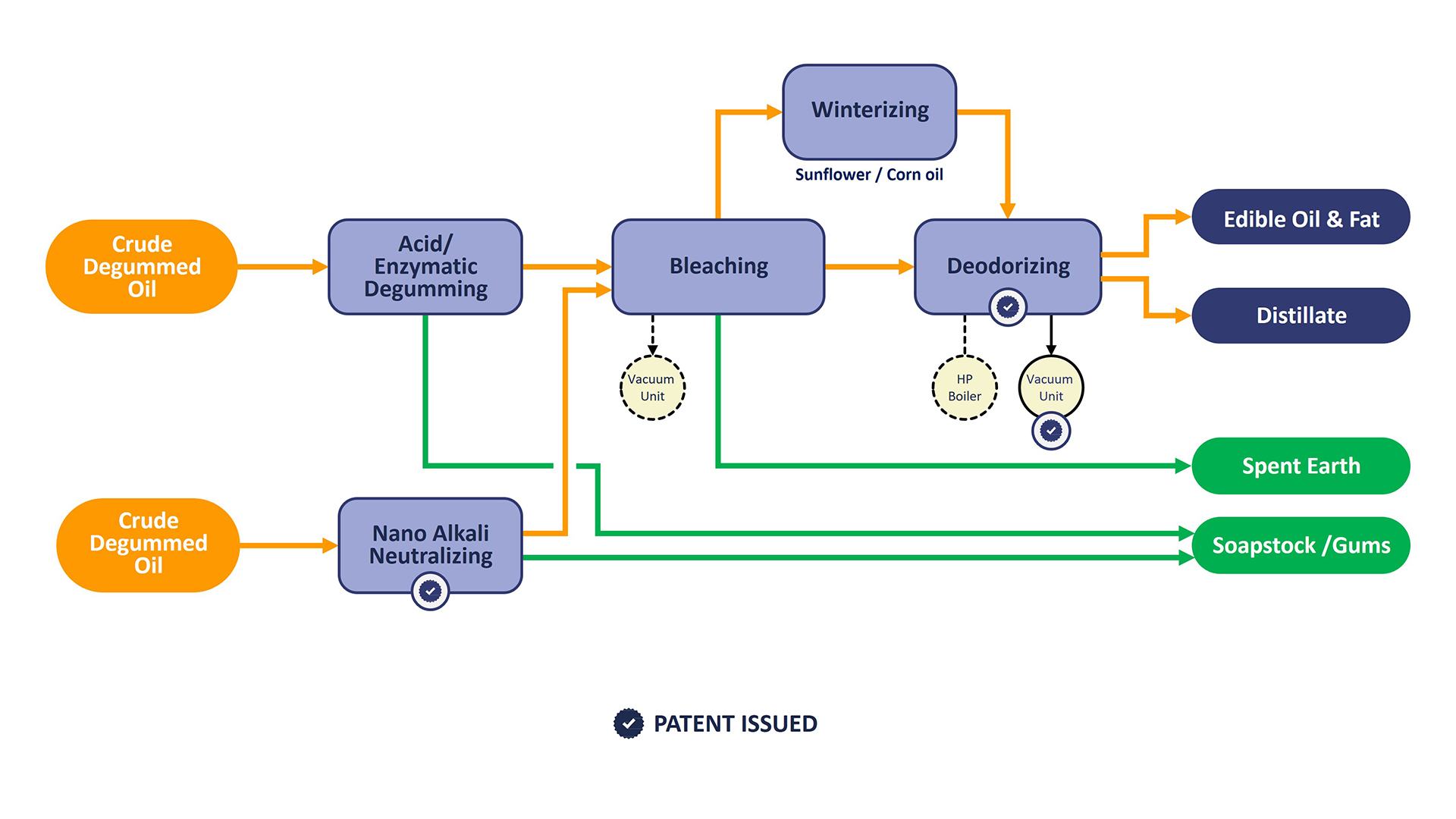

To illustrate the two oil refining routes mentioned above, we provide a detailed flowchart below. The diagram outlines each process step, from crude vegetable and animal oils and fats to the final refined oils and fats to be used in edible products.

Download this flowchart

Advantages

The Desmet refining process for oils and fats offers multiple benefits, ensuring the highest standards of quality and safety.

Quality

Nutritional quality & food safety with low trans fatty acids, low GE and 3-MCPD, minimal contaminants, low fat degradation/oxidation, and controlled tocopherols and phytosterols content.

Stability

Good cold stability, oxidative stability, and long shelf life.

Taste

Oils with a bland taste, no odour, and a light & brilliant colour.

Customization

Flexible, efficient and highly automated plants tailored to specific customers' needs.

Raw materials

Desmet is specialized in refining high-quality vegetable oils, using key raw materials such as palm oil, soybean oil, rapeseed oil and sunflower oil. We also have extensive experience with refining less common raw materials like fish oils, cocoa butter, coconut oil, and more. All these oils are processed to meet the highest standards of purity, nutritional value, and quality required by the food industry.

Other oils

Palm Oil

Palm oil

Rape seed oil

Rapeseed oil

Soyabean oil

Soybean oil

Sunflower Oil

Sunflower oil

Key proprietary equipment

Our oil refining processes use advanced proprietary equipment designed to the highest industry standards, ensuring the best quality end-products. Key proprietary equipment includes bleachers, deodorizers and vacuum systems. This equipment is integrated into complete oil refineries, which are fully and carefully designed by the Desmet engineering teams.

Bleacher

Bleachers

Continuous and batch bleachers in a large capacity range, to cover customers’ needs and optimal performance of the bleaching section

Deodorizers

Deodorizers

Continuous and semi-continuous deodorizers with a modular design and optimized heat recovery and excellent final product quality, adapted to the specific needs of your refinery.

Vacuum systems

Vacuum systems

Closed (and chilled) barometric vacuum systems and Desmet Sublimax 2G ice condensing systems, for deep vacuum deodorizing with minimal energy consumption and optimal product quality.

Our services

With a focus on cutting-edge technology, high-quality components, and comprehensive on-site support, our service teams ensure optimized plant performance and minimized operational disruptions.

Plant automation

Enhance efficiency and control with our plant automation solutions, ensuring seamless integration and optimal performance for your operations.

Replacement parts

Ensure reliability and longevity with our high-quality replacement parts, designed to maintain and enhance your plant's productivity.

Site services

Maximize uptime and operational efficiency with our on-site services, gaining expert support and maintenance tailored to your needs.

R&D and Innovation

Enhance processes and technologies to address and anticipate market challenges and trends, for more quality output and performance.
